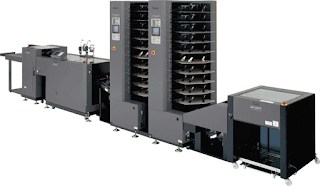

Duplo DC 10/60 System Machine

Duplo DC 10/60 System Machine is the perfect choice to complement your company's printing press in the presence of the auxiliary engine must be owned by you wherever located, with the presence of 10/60 PRO DSC Duplo machine is now complete it is then your company needs.

Machine type :    Floor type vertical suction collator
The number of bins to be collated :    10 bins/unit
Maximum number of units connectable:     Up to 6 units
Feeding system :    Belt suction feed system
Covenyance system :    Roller belt convenyance system
Maximum paper loading volume :    65 mm in height
Paper size :    Minimum: 120 mm(W) x 148 mm(L) Maximum:350 mm(W) x 500 mm(L)
Paper quality :    Fine qulaity, Art/coated
Paper weight :    Fine quality: 52 to 300 gsm Art/Coated: 79 to 157gsm
Paper type     ・ Sheet ・ Single-folded (Below 80gsm / within 10 bins・ Cross-folded (Below 80gsm / within 5 bins)
Maximum Process Speed :    9,000 sets per hour (A4 LEF)
Additional functions     ・Cover insert function
・All bins mode
・Alternate mode
・Screen save mode
・Block function (1/2, 1/3, 1/4)
Power supply :    AC100 - 240V, 50/60 Hz
Power consumption:    9.5A - 4.5A
Dimensions :    630 (W) x 750 (D) x 1,972 (H) mm
Power Supply     AC100 - 240V, 50/60 Hz
Weight :    298kg
・Paper overlap amount
・Counter backup function
・Left/right ejection direction selection function
・Manual feed function (When using the LUL-HM)
・Reject function
・Waiting mode
・Intelligent mode
